Spike - Investigate Cloudflare Firewall

Overview​

Results from a spike looking into cloudflare firewall rules for GraphQL. The aim of the spike is to review firewall rule/zone lockdowns set up in cloudflare and potential work to be done regarding the new implementation.

Firewall rule and zone lockdowns for GraphQL​

- Rapha.cc:​

  • Firewall rule:

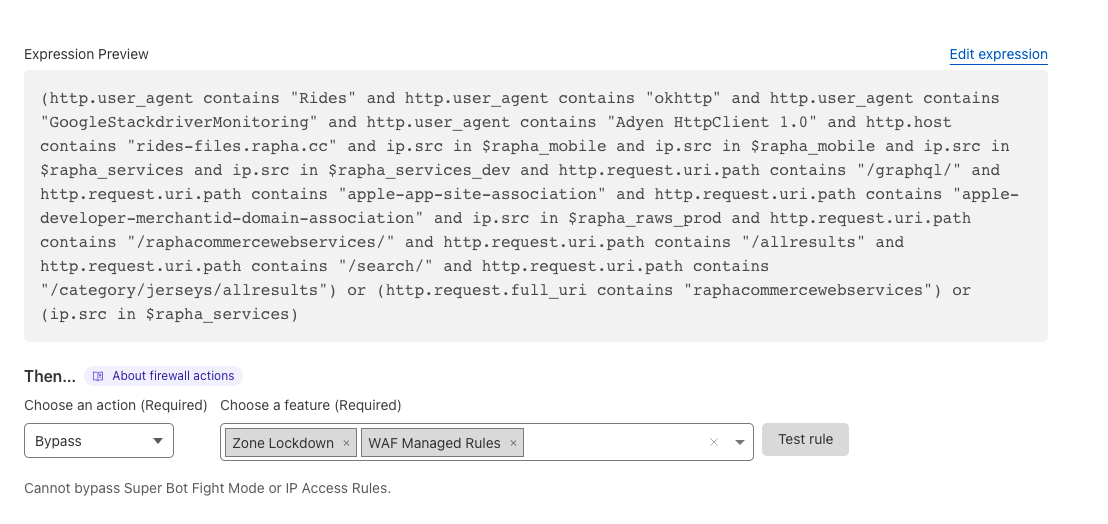

Rapha main site firewall rule

The rules we are concerned about are:

  • http.request.uri.path contains "/graphql/"
  • http.request.uri.path contains "/raphacommercewebservices/"
  • http.request.full_uri contains "raphacommercewebservices"
  • http.request.uri.path contains "/search/"
  • http.request.uri.path contains "/category/jerseys/allresults"

which would give use access to the GraphQL hybris endpoints defined here:

The rule bypass the zone lockdown (which allows user to dynamically disable Cloudflare security features for a request) and the WAF managed rules (which identifie and remove suspicious activity for HTTP GET and POST requests).

Question

Shouldn't we have something like -> /category/${pageCategory}/allresults rather than just /category/jerseys/allresults?

  • Zone lockdowns:

Zone Lockdown specifies a list of one or more IP addresses, CIDR ranges, or networks that are the only IPs allowed to access a domain, subdomain, or URL. Zone Lockdown allows multiple destinations in a single rule as well as IPv4 and IPv6 addresses. IP addresses not specified in the Zone Lockdown rule are denied access to the specified resources.

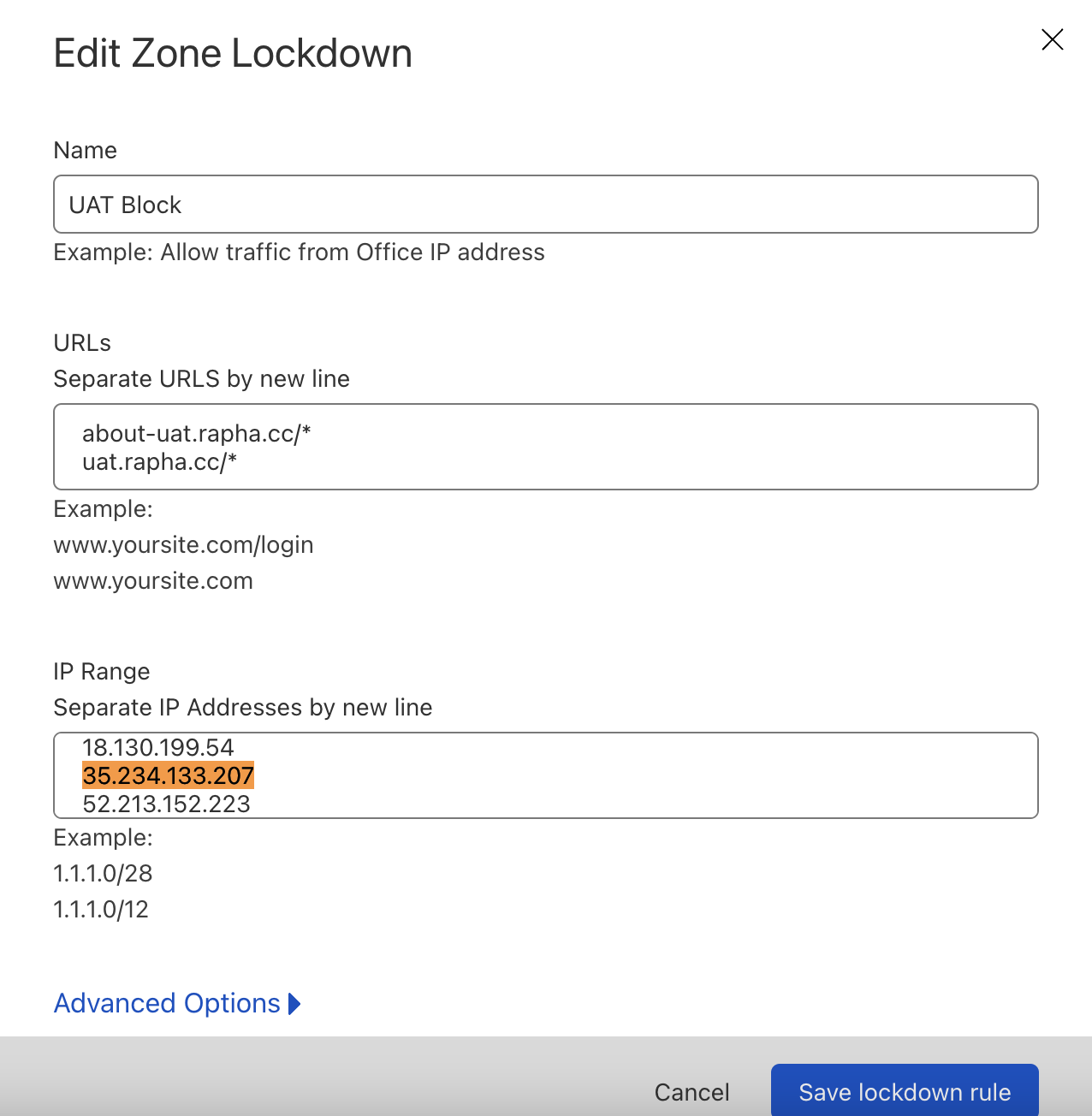

A zone lockdown as been created for 35.234.133.207 under the ALPHA BLOCK and UAT Block zone lockdowns - one of UAT EIP. No zone lockdowns were created for 35.241.20.180 - the second UAT EIP as well as for 35.242.180.235 and 35.244.163.141 - the 2 Prod EIPs.

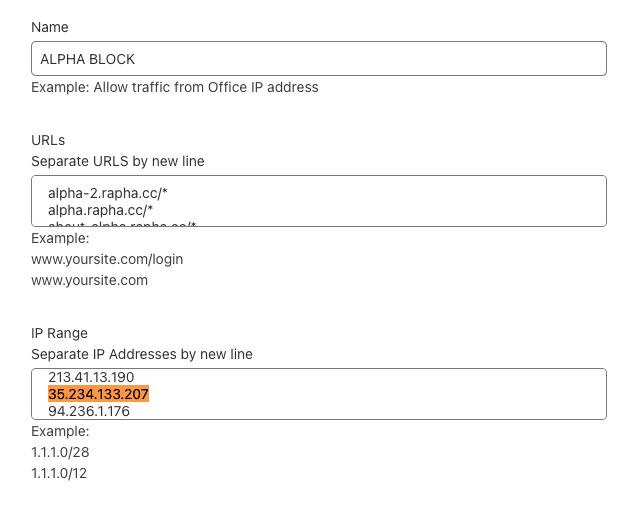

Rapha zone lockdown alpha block

Rapha zone lockdown alpha block

Question

Should we create a zone lockdown for 35.241.20.180 as well as the Prod EIP’s - 35.242.180.235 , 35.244.163.141 and then bypass the zone lockdowns in a firewall rule?

How to modify if needs be?​

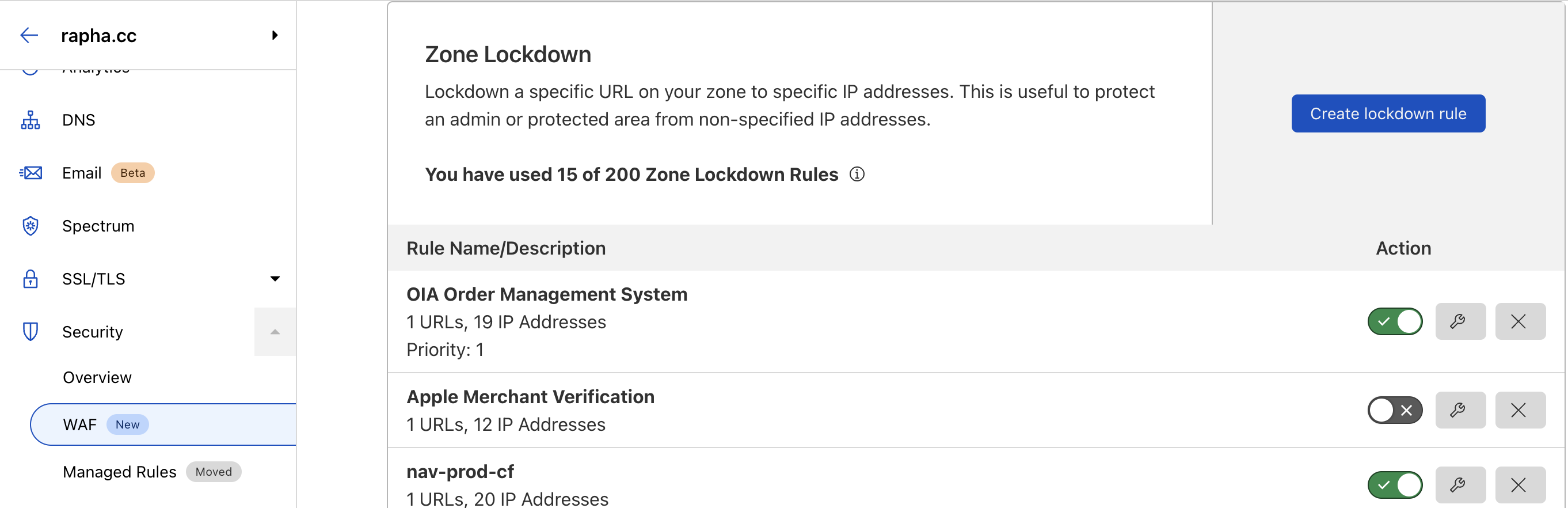

Zone lockdown are located under Security -> WAF -> Tools then Zone Lockdown.

Rapha zone lockdown alpha block

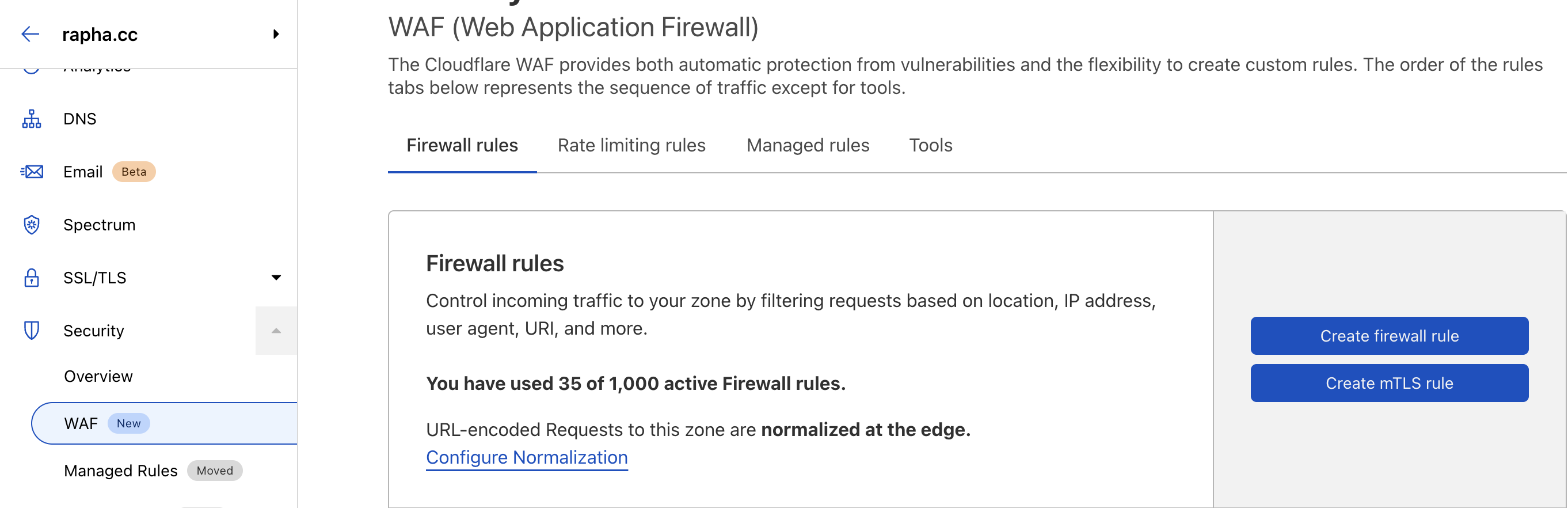

Firewall rules are located under under Security -> WAF -> Firewall rules.

Rapha zone lockdown alpha block

--
